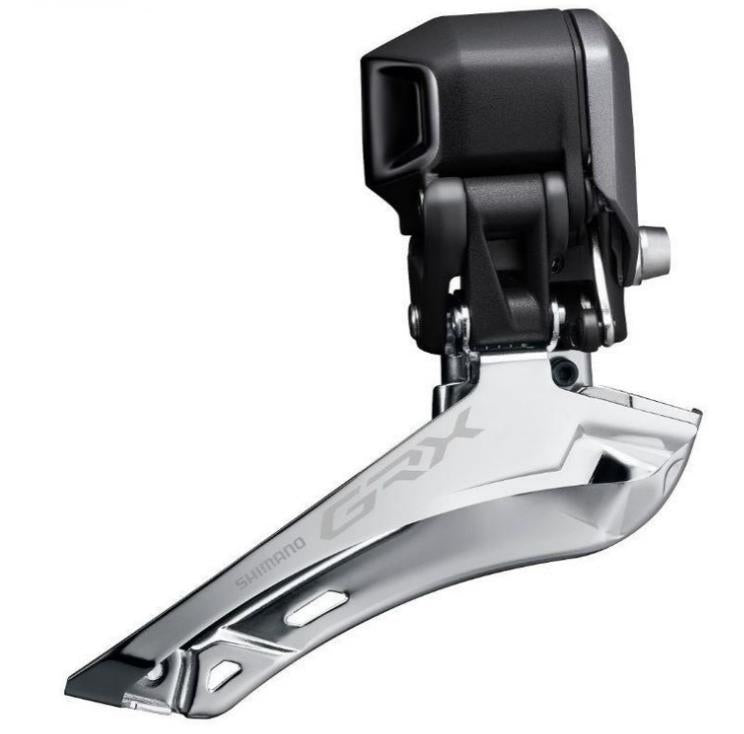

Shimano Gravel GRX RX815 Di2 2Speed Front Derailleur
Shimano Gravel GRX RX815 Di2 2Speed Front Derailleur
Regular price
$199.00 USD
Regular price
$209.00 USD
Sale price
$199.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
FD-RX815-F - Shimano GRX - DI2 - Front Derailleur - Gravel - 2x11-speed
The Shimano GRX RX815 DI2 front derailleur delivers quick and smooth front shifting even under high pedalling torque. It's designed for a wider, 17T front range and it has programmed chain guide trim settings. It can be used in full or semi Shimano Synchronised Shift modes.
- Chainline +2.5 mm vs. conventional road FD
- 17T front range
- Wider tyre clearance
- Wider range front gearing
SPECIFICATIONS
| Model No | FD-RX815-F |
| Series | Shimano GRX DI2 |
| Colour | Series colour |
| Average Weight | 135g |
| Action | Down swing |
| Chain Line | 46mm |
| Chain Stay Angle | 61-66 |
| Compatible Chain | HG-EV 11-speed/ HG-X11 |
| E-Tube Connector | 0 pces |
| E-Tube Port | One piece |
| Firmware Update By E-Tube Project | Yes |
| Link Bushings | Two |
| Mount | Brazed-On |
| Speeds - Front | Two |
| Speeds - Rear | 11 |
| Top Gear Teeth | 46-50T |
| Total Capacity | 17T |
